Description
Quiet, Lightweight Reliable Power

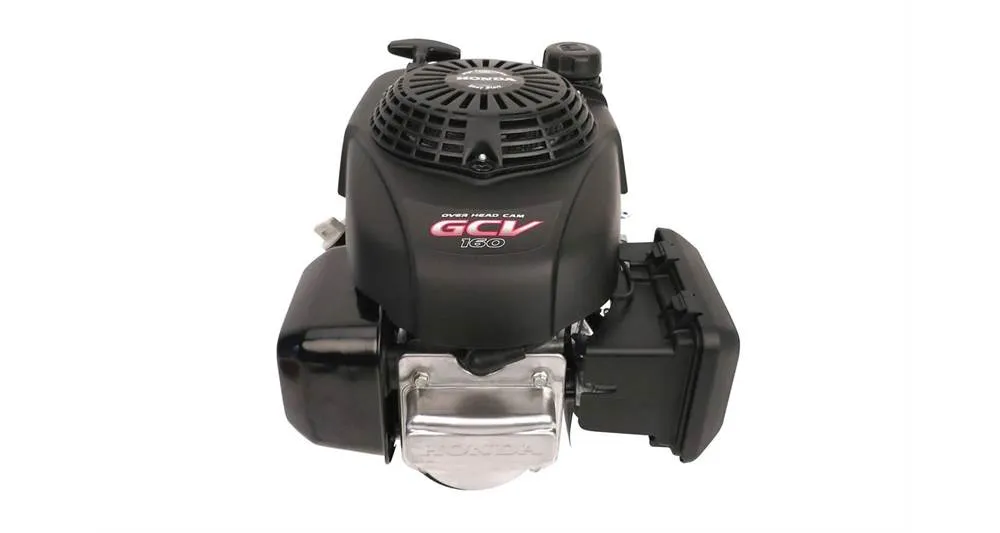

Honda GCV engines offer a quiet, yet powerful and lightweight combination for a variety of demanding applications. Ideal for residential mowers and pressure washers, these engines pack a punch.
Common Applications
- Pressure washers
- Lawn mowers
- Agricultural equipment
- Forestry equipment
Fuel Efficient, High Output Operation
- Powerful torque across a wide RPM range helps reduce engine speed drop from sudden load increases.
- Compact combustion chamber, overhead cam design, and uniblock construction reduce fuel consumption
Compact and Lightweight
- The lightest engines in their class
- The world's first general purpose engine internal timing belt
- Tough resin overhead cam for durability and quietness
- Uni-block construction
Quiet, Smooth Performance
- Internal timing belt provides quiet operation
- Valvetrain and gear noise is minimized
- Precision engineered and machined components result in lower vibration
Proven Reliability
- Dua-Lube System provides superior engine lubrication
- Simple construction reduces many potential maintenance needs
- High quality materials, fit, and finish
- Single element air filter
Easy to Use and Maintain
- Auto Choke System available
- Easy access oil drain and fill
- Easily accessible spark plug
- Proven lifetime timing belt design
Easy Starting
- Horizontal cross-flow intake port to smooth the flow of fuel
- Automatic mechanical decompression
- Electronic ignition
Emissions Compliant
- CARB and EPA certified
- No catalyst necessary
- Built in charcoal canister in gas cap
Available Options
- Honda blade brake clutch assembly available for lawn mower applications
- Different controls are available for a variety of different applications (pressure washer, lawnmower, log splitter, etc.)
- Electric start version available
Specifications
- Engine Type: Air-cooled 4-stroke OHC
- Bore x Stroke: 2.5" x 2.0" (64 mm x 50 mm)
- Displacement: 9.8 cu in (160 cm3)
- Net Power Output*: 4.4 HP (3.3 kW) @ 3600 rpm
- Net Torque: 6.9 lb-ft (9.4 Nm) @ 2500 rpm
- PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
- Compression Ratio: 8.5:1
- Carburetor: Horizontal type butterfly valve
- Ignition System: Transistorized magneto
- Starting System: Recoil/electric
- Air Cleaner: Dry (paper filter)
- Governor System: Centrifugal Mechanical
- Fuel Tank Capacity: .98 U.S. qts (.93 liter)
- Fuel: Unleaded 86 octane or higher
- Oil Capacity: 0.58 US qt (0.55l)
- Lubrication System: Splash
- Dry Weight: 22.0 lbs (10.0 kg)
Dimensions
- Length (min): 14.4" (367mm)
- Width (min): 13.0" (331mm)
- Height (min): 13.7" (347mm)
PTO
- N1: Straight shaft
- A2: Straight shaft
- S3: Straight shaft
- N5: Straight shaft
- N7: Straight shaft
