Description
Durability comes standard.

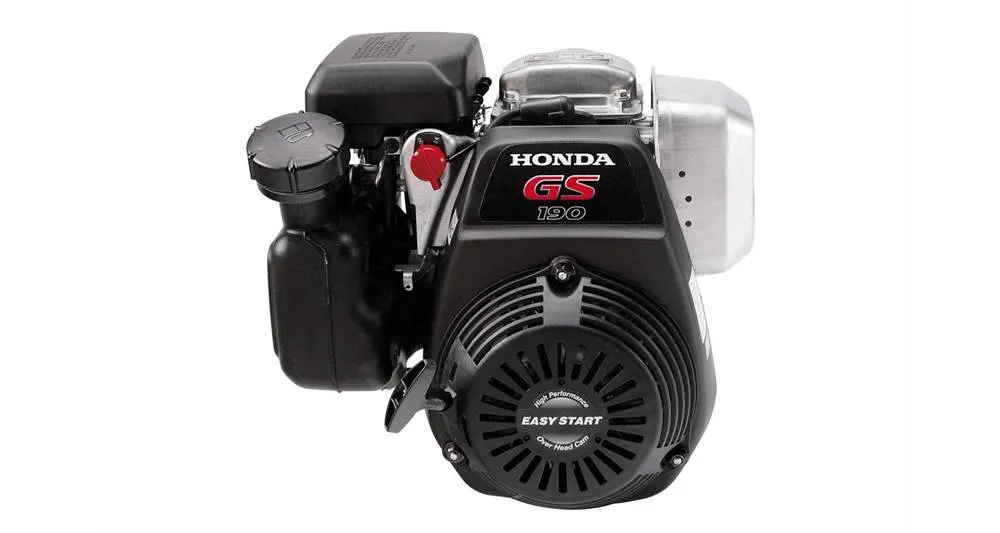

The GS190 offers the best of two worlds. Higher durability, with features like a cast iron cylinder liner and three-piece oil control. And the benefits of a lightweight, compact, quiet OHC design. It's an excellent choice for demanding homeowner applications and commercial equipment alike.
Common Applications
- Pressure washers
- Tillers / cultivators
- Agricultural equipment
- Water pumps
Fuel Efficient, High Output Operation
- Compact combustion chamber, overhead cam design, and uniblock construction reduce fuel consumption
- Powerful torque across a wide RPM range helps reduce engine speed drop from sudden load increases.
Compact and Lightweight
- The lightest engines in their class
- Overhead cam, overhead valve design
- Tough resin overhead cam for durability and quietness
- Uni-block construction
Quiet, Smooth Performance
- Internal timing belt provides quiet operation
- Valvetrain and gear noise is minimized
- Precision engineered and machined components result in lower vibration
Proven Reliability
- Cast iron cylinder liner
- Dual element air cleaner for increased life
- Ball bearing suported crankshaft
- Dua-Lube System provides superior engine lubrication
- 3 piece oil control ring for long life
- Proven lifetime timing belt design
Easy to Use and Maintain
- Easy access oil drain and fill
- Easily accessible spark plug
- Proven lifetime timing belt design
Easy Starting
- Horizontal cross-flow intake port to smooth the flow of fuel
- Automatic mechanical decompression
- Electronic ignition
Emissions Compliant
- No catalyst necessary
Available Options
- Different controls are available for a variety of different applications (pressure washer, lawnmower, log splitter, etc.)
Specifications
- Engine Type: Air-cooled 4-stroke OHC
- Bore x Stroke: 2.7 x 2.0 in (69 x 50 mm)
- Displacement: 11.4 cu in (187 cm3)
- Net Power Output*: 5.2 HP (3.9 kW) @ 3,600 rpm
- Net Torque: 8.3 lb-ft (11.3 Nm) @ 2,500 rpm
- PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
- Compression Ratio: 8.5:1
- Carburetor: Horizontal type butterfly valve
- Ignition System: Transistorized magneto
- Starting System: Recoil
- Lubrication System: Splash
- Governor System: Centrifugal Mechanical
- Air Cleaner: Dual element
- Oil Capacity: 0.61 US qt (0.58l)
- Fuel Tank Capacity: 1.9 U.S. qts (1.8 liter)
- Fuel: Unleaded 86 octane or higher
- Dry Weight: 30.4 lb (13.8 kg)
Dimensions
- Length (min): 13.6" (345mm)
- Width (min): 14.5" (369mm)
- Height (min): 13.5" (343mm)
PTO
- Q type: Straight shaft
- V type: Tapered shaft
- P type: Threaded type (SAE)
